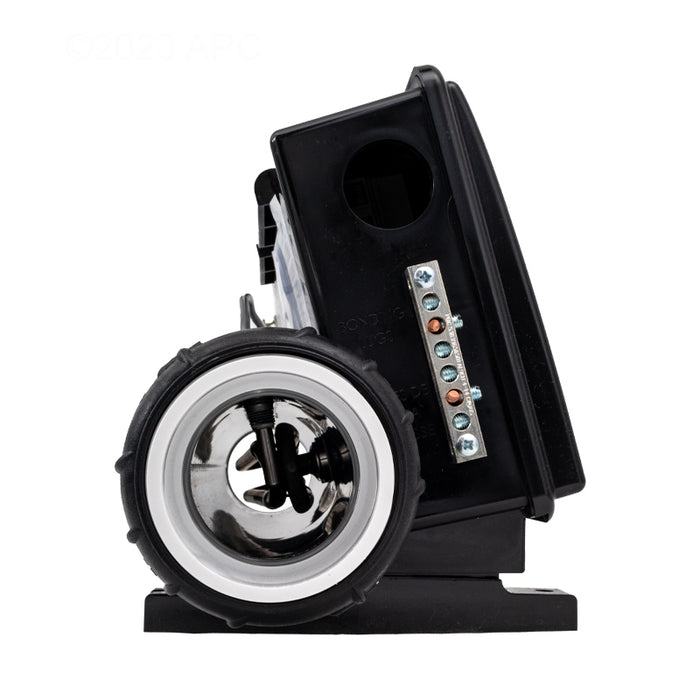

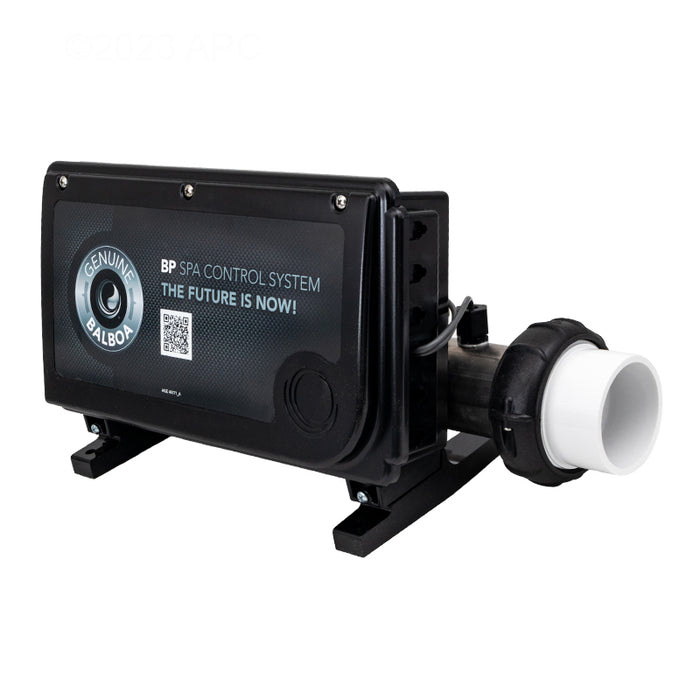

Balboa BP100 Control System G6402-01

Balboa BP100 Control System G6402-01

The BP100 Series System Can Operate:

• (1) 4.0 kW Stainless Steel Heater Assembly (M7 Heater Assembly Included)
• (1) Two Speed Pump 120 Volt or 240 Volt
• (1) Single Speed Pump or (1) Blower 120 Volt or 240 Volt
• (1) Ozonator
• (1) Spa Light

(If installing a circulation pump it must run at least 23 Gallons Per Minute)

The Balboa BP100 Series Control System Includes:

• Control Pack (115 or 230 Volt)
• Balboa Top Side Control Panel TP200T (Temp, Jets, Light, and Aux)

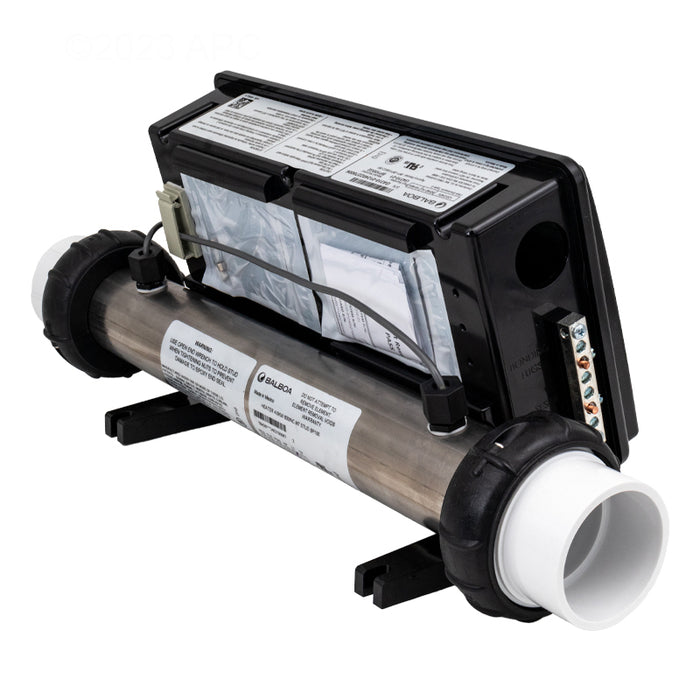

• Balboa Stainless Steel Heater Assembly with M7 Flow / Temperature sensors
• Light Housing Assembly (Excludes Light Lens or Bulb) (Can operate a standard light or LED light)
• Panel Overlay
• Top Side Control Panel Adapter Plate
• Cords for Pumps, Blowers, etc. Sold Separately if Needed

BP100 Series Features and Benefits:

• Wi-Fi Enabled (Sold Separately)

• Replaces failure-prone mechanical pressure/flow switch
• Can be plumbed to either suction or pressure side of pump
• 120/240V convertible power
• Custom plastic enclosure
• M7 flow/ temperature sensors
• Rigorously tested
• US & Canadian safety approvals

Thanks to a combination of Balboa engineering and patented M7 technology, we now offer the highest component reliability in the business with fewer returns and longer life expectancy than traditional non-M7 systems. At Balboa, innovative engineering and state-of-the-art manufacturing go hand in hand to deliver a quality, cost effective product that will provide years of reliable, headache-free service.

Patented M7 Technology Includes:

• Smart Sensor Technology
• Multiple High Limit Safety Systems
• All Safety Functions always active
• Both Sensors are Identical
• Sensors monitor each other via software to regulate spa functions
• Ensures a proper operating environment for heater element
• No Sensor Installation in spa wall
• No Pressure Switch problems

Heater Element and Tube:

• Enlarged bend radius
• No wire ties
• Minimizes debris collection

Heater Tube:

• No welds required
• Front mounted
• Easy access for service

Note:

• Designed to be installed by a professional spa or hot tub technician

Balboa G6402-01
