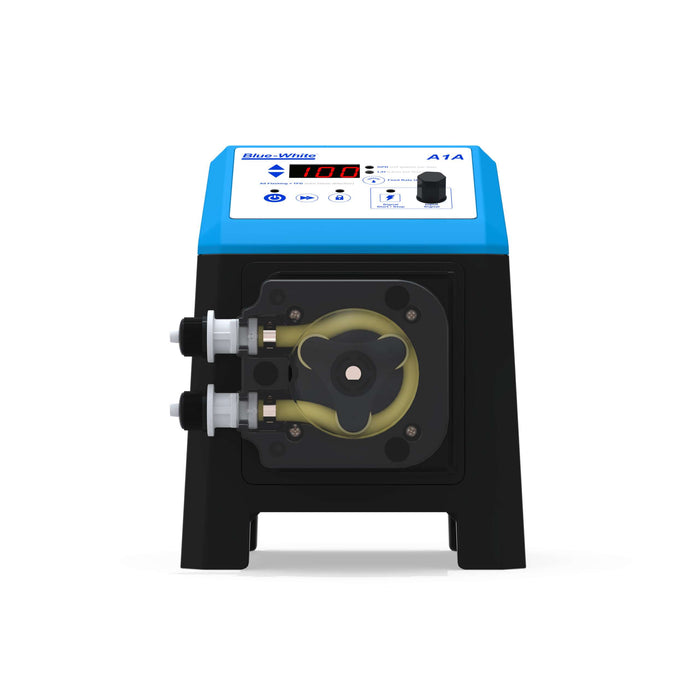

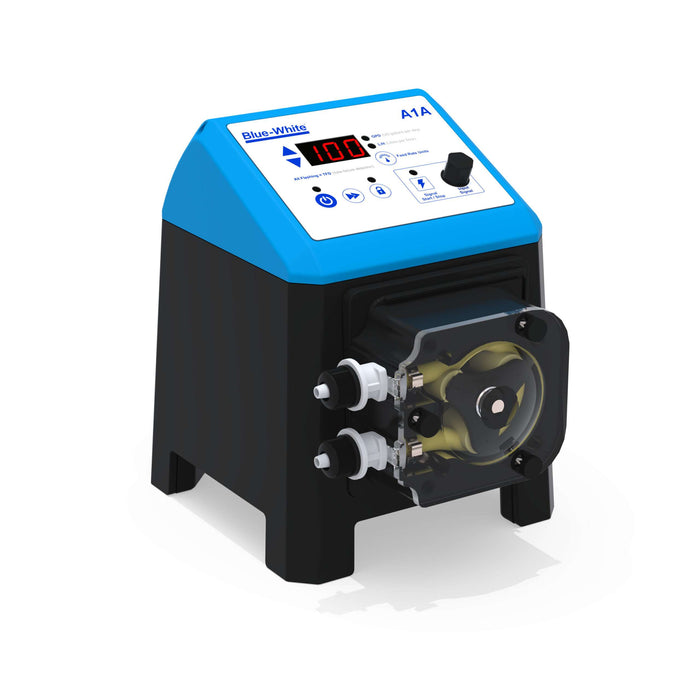

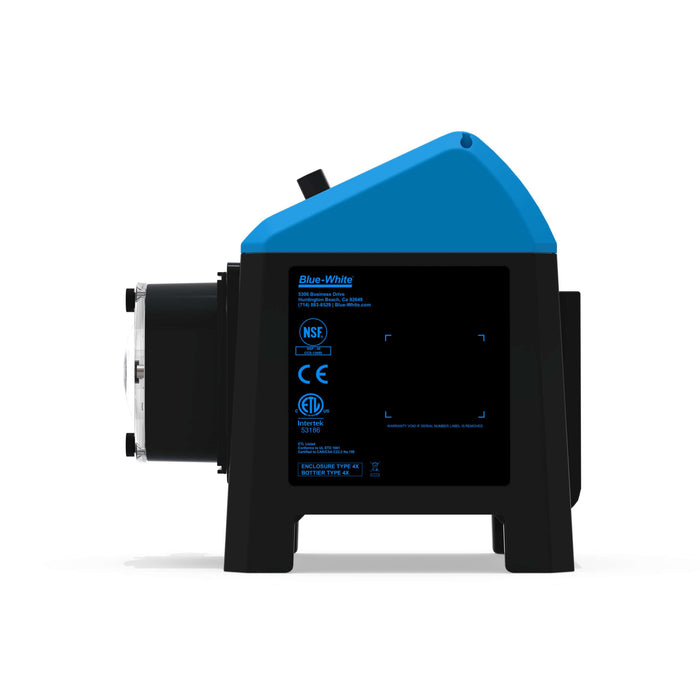

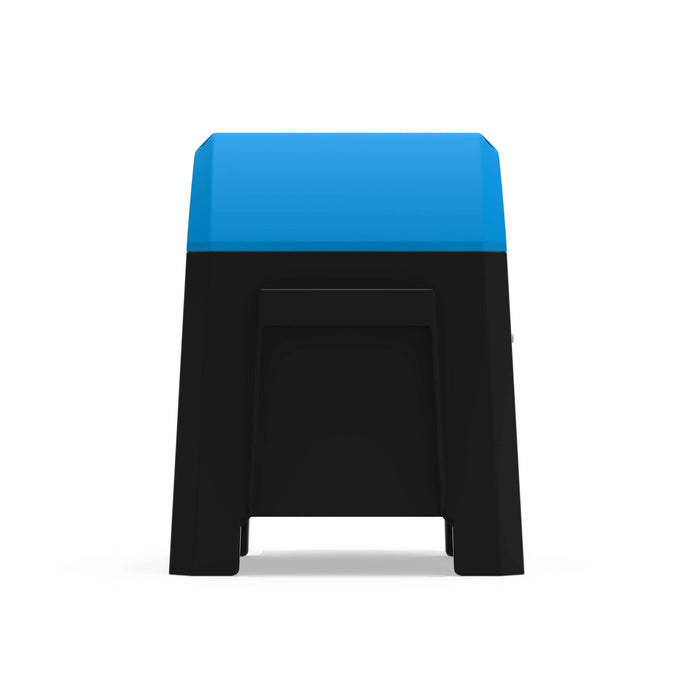

Blue-White FlexFlo Peristaltic Metering Pump A1A6-7T

Blue-White FlexFlo Peristaltic Metering Pump A1A6-7T

For installations requiring higher chemical feed, such as Water Parks and other high-volume Commercial Aquatics for sanitizing (sodium hypochlorite) and pH adjustment (acid) for low maintenance, more trouble-free, and reliable chem feed solution.

Features:

• Peristaltic pump design does not have valves that can clog requiring maintenance.
• Self-priming – even against maximum line pressure. By-pass valves are not required.
• Cannot vapor lock or lose prime.
• Remote Start/Stop: Non-powered dry contact closure for remote start/stop.
• One 48VDC @ 80mA relay
• Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
• CNC precision-machined squeeze rollers for optimum squeeze, unparalleled accuracy, and tube life.
• Heavy-duty rotor – single piece plastic rotor means no flexing and increased accuracy withno metal springs or hinges to corrode.
• Energy-efficient variable speed DC motor.
• Specially engineered tubing for long life.
• Tube Failure Detection (TFD) senses tube rupture preventing hazardous chemical spills.
• Lockout feature to prevent tampering.

Whats Included:

• A1A Acid and Liquid Chlorine Feeder
• One tube assembly
• Suction tube – clear PVC – 5′ length (3/8″ OD x 1/4″ ID)
• Suction strainer
• Suction ceramic weight
• Discharge tube – opaque polyethylene – 5′ length (3/8″ OD x 1/4″ ID)
• Discharge injection fitting with check valve
• Mounting hardware kit
• (2) Tube nuts

• 2 year warranty

Specifications:

• Maximum Working Pressure (Excluding pump tubes): 40 PSI (2.76 bar)
• Duty Cycle: Continuous

• Maximum Overall Dimensions: 7.25” Width x 9” Height x 10” Depth
• Maximum Suction Lift: 30 feet of water at sea level (14.7 atm psi)
• Flow Range Adjustment: 0.01 – 100 GPD (0.01 – 15.8 LPH)
• Ambient Operating Temperature: 14 F to 125 F (-10 C to 52 C)
• Motor: Brushless DC, 50W
• Enclosure: NEMA 4X (IP66), Valox (PBT) & PA12
• Voltage: 220

Blue-White A1A6-7T
