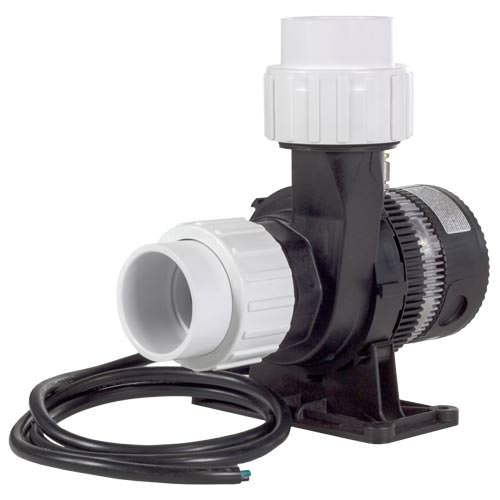

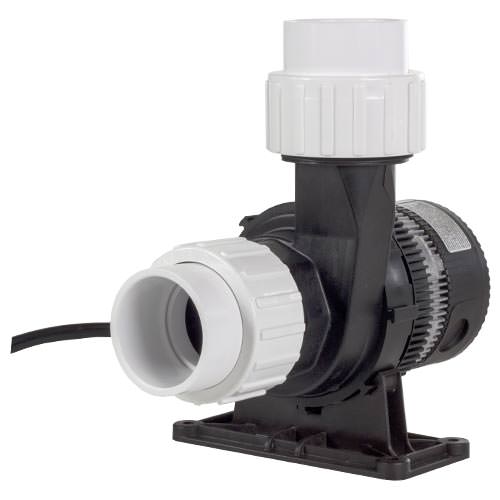

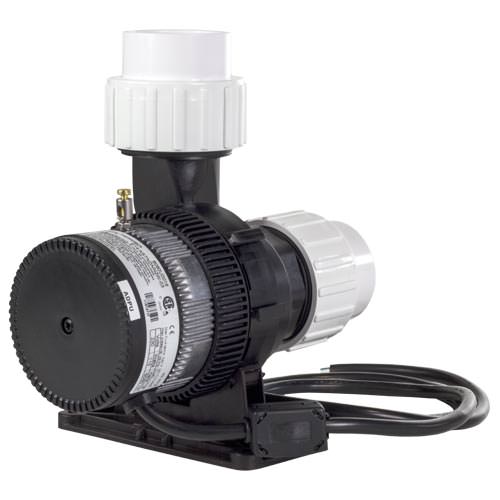

Laing E14 Circulation Pump - 230V - 73348

Laing E14 Circulation Pump 73348

The Laing E14 Circulation Pump is used in many hot tub brands, aquariums, ozone treatment system and can be used to replace most brands of circulation pumps. The E14 is highly efficient and consumes 40% less power than many comparable circulation pumps. The E14 Circulation Pump is lightweight, whisper quiet and compact.

The compact design and mounting versatility allows for easy installation. The pump can be mounted horizontally or vertically with motor end down and the motor bracket is adjustable to 4 different discharge angles.

E14 Circulation Pump Features:

• Mounting Bracket is adjustable to 4 different discharge angles
• Clog resistant open impeller
• Unique patented design has no mechanical seal
• Domestic or international 50 or 60Hz same high flow
• Compact Design
• Lightweight, less than 4 lbs
• Open Impeller - Resistant to Clogging
• Dry Run Protection
• Whisper quiet, less than 50 db
• Includes 4 foot power cord

E14 Circulation Pump Specifications:

• Voltage: 230
• Intake and Discharge: 1 1/2" Buttress Threads
• Watts: 110
• Max Capacities: 36 GPM
• Max Head: 10.5'
• Maximum Working Pressure: 50 PSI
• Maximum Temperature: 140 Degrees Fahrenheit
• Rotation: counter clockwise when viewed from the motor end
• Electronically Commutated AC/DC/AC Spherical Motor
• Automatic overload protection
• 2100 RPM

Known As:
Laing Model # E14-NSTNNN2W-10
Laing 73348
Laing Part # 6080U0014
