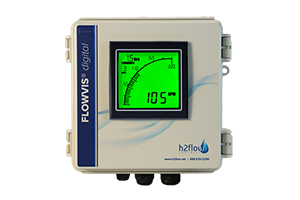

FlowVis Digital Flow Meter

FlowVis Digital Flow Meter

Unlock the full potential of the FlowVis flow meter by ugrading to the FlowVis Digital.

FlowVis Digital provides the user with remote indication via an LCD display, visual alarms at user-defined set points, provides pool turnover rate information, allows the user to operate external equipment at user-defined flow rates, and more.

Energy savings when using a FlowVis flow meter in combination with a variable speed pump are typically 20% greater than those seen when using a variable speed pump
alone.

While flow and velocity are related, very few people appreciate just how fast water travels through a suction fitting and a filtration system. Safety advocates are now placing an even greater emphasis on this, and FlowVis® is the first flow meter to display the velocity reading as a standard feature.

The velocity scale - which provides a readout of velocity in feet-persecond for both the suction and discharge side of the pump - is featured on ten different FlowVis models.

Features:

• FlowVis functions as a flow meter, check valve (select models), and a velocity meter
• Greater than 98% accuracy across the entire model range
• The only NSF 50, Level 1 certified flow meter in the world
• With FlowVis Digital, you can set flow rate alarms for high and low flow rates
• Installs horizontally, vertically, or even upside-down
• FlowVis Digital offers pool turnover rate functionality
• FlowVis products are made in the USA with 95% of materials sourced in North America
• 1.5” - 2.5” models can be installed with zero straight pipe requirements
• FlowVis Digital can interface with heaters, pumps, and more
• FlowVis products carry a 3-year warranty

FlowVis Digital Allows You To:

• Know the turnover rate - All but two U.S. States have a mandated turnover rate for commercial pools and spas. FlowVis Digital is the first and only flow meter that displays the current turnover rate.

• Retrofit to existing FlowVis units - FlowVis Digital is available
  for both new and existing FlowVis installations and is compatible with most models 1.5” - 8” units.
• Interface with other equipment - FlowVis Digital has the ability to interface with other equipment, ensuring they only operate above a userdefined flow rate.
• Set flow rate alarms - Set minimum and maximum flow rate alarms to ensure your system is operating as desired.
• Know the precise flow rate - FlowVis Digital is factory calibrated to mirror a Mag flow meter that has a NIST traceable accuracy of 0.02%.
• Receive remote indication - FlowVis Digital eliminates problems with gaining access to the flow reading, such as in tight spaces, or issues with parallax errors.

Compatible with FlowVis Valve Models (Sold Separately):

• FV-15
• FV-15-L
• FV-15-U
• FV-C-M-DN40
• FV-2
• FV-2-L
• FV-2-U
• FV-C-M-DN50
• FV-C
• FV-C-S
• FV-C-S-L
• FV-25
• FV-25-L
• FV-C-M-DN65
• FV-C-M-DN65-HF-S
• FV-3
• FV-3-L
• FV-C-M-DN80
• FV-4
• FV-4-L
• FV-C-M-DN100
• FV-6
• FV-6-L
• FV-C-M-DN150
• FV-8
• FV-8-L
• FV-C-M-DN200

H2Flow Flovis FV-D
