FlowVis Flow Meter 2" - 2.5" With SVRS Safety Flapper

Item #: FV-C-S

This item is IN STOCK

This item is TEMPORARILY OUT OF STOCK

Usually Ships Within 1 Business Day

Expedited Shipping NOT Available Not Available Outside Contiguous US

This Product is no longer available

We apologize for any inconveniences

Please try one of these alternatives below

Item Details

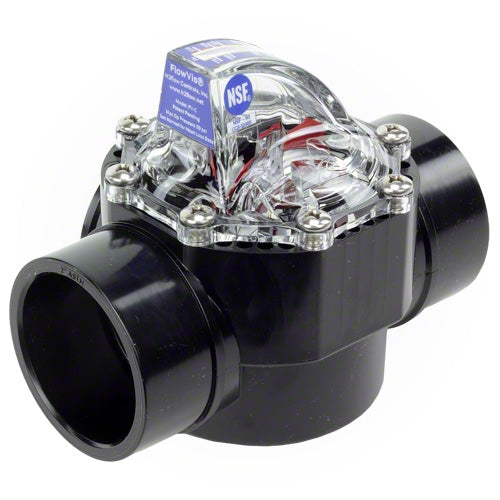

FlowVis Flow Meter FV-C-S

FlowVis Flow Meter with Safety Flapper is designed for swimming pools with a SVRS Systems (Safety Vacuum Release System). This flow meter features a non-sealing flapper for these types of applications but will also work great for any other type of installation requiring a flow meter This flow meter does not provide check valve functionality.

The Virginia Graeme Baker Pool and Spa Act requires that all public swimming pools and spas that have a single main drain or multiple drains that are 3 feet or less (center to center) from each other, be fitted with a backup anti-entrapment system. Such systems include, but are not limited to, SVRS and Automatic Pump Shut Off systems. Special consideration must be made when installing a FlowVis to such applications. Several of these systems do not allow the use of Check Valves. It is the responsibility of the installer to make sure that the requirements of the specific backup system in use are maintained.

The FlowVis is a revolutionary, affordable, and highly accurate Flow Meter. As flow increases and decreases, the Valve’s flapper swings within its range of motion. A specifically designed calibration spring, indicating arm, and an extended height valve body lid constitute the fundamentals of the FlowVis design concept.

The FlowVis is a revolution in reliable flow measurement. It is the most advanced, affordable, and reliable precision Flow Meter designed specifically for pools, spas, fountains, and water features.

FlowVis is built to last. It's robust, yet unobtrusive design means that unlike competing Flow Meters, FlowVis won't get kicked, tripped over, or broken. Unlike Pitot tube / Rotameter style devices, FlowVis will not stick, bounce, or provide inaccurate readings of flow. There are no saddle clamps to corrode, flat rubber seals to deteriorate, or small holes to become blocked.

A factor that plagues the installation of flow meters is the manufacturers’ stated need to have a significant length of straight pipe available. Most often this is 15 x the pipe diameter. So, for a 2.5” diameter pipe, this would require 37.5” of straight pipe; anything less will induce even greater inaccuracy. FlowVis has no such restrictions; you can install it directly between two 90 degree elbows and maintain the same amazing accuracy!

Unlike other Flow Meters, the position in which FlowVis is installed (horizontal, vertical or relative to elbows and tees), has zero effect on its accuracy.

FlowVis Features:
  • For use with 2" or 2 1/2" Pipe
  • Measure flow rates from 10 to 110 GPM
  • Non-Sealing Safety Flapper for Pools and Spas with SVRS Systems.
  • Installation flexibility - far less space required than other flow meters
  • Unique design results in maintained accuracy even with entrained air caused by suction leaks.
  • FlowVis provides a precise, easy-to-read flow rate
  • Maximize energy savings by slowing the pump to its lowest required speed for pool sanitation
  • Allows precise and repeatable valve positioning for perfect water feature operation
  • Design life of 15 years with spring replacement every 7.5 years

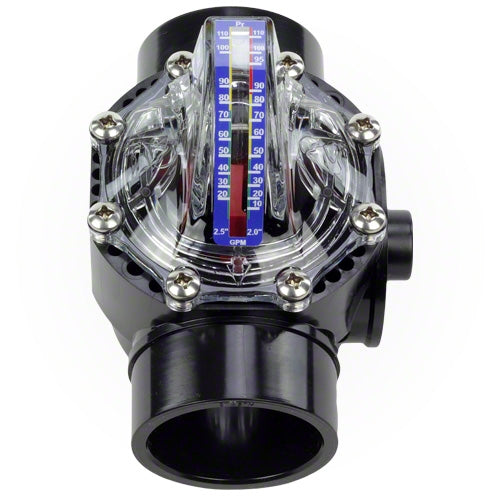

  • Clear, easy to read scale
  • No calibration required
  • Accuracy of +/- 2 GPM
  • Rugged construction
  • Pressure tested to >50psi
  • NSF certified
  • 5-year manufacturers breakage warranty
  • Assembled in the USA

The FlowVis has undergone exhaustive testing and calibration to ensure long life, accuracy, and repeatability. No other Flow Meter at this price point is NSF certified or comes remotely close to its +/- 2 GPM accuracy. Note: Accuracy: of +/- 2 GPM from 0 to 100 GPM verified by NSF testing.

H2Flow FlowVis FV-C-S

Customer Reviews

Based on 19 reviews
84%
(16)
16%
(3)
0%
(0)
0%
(0)
0%
(0)
E
Ethiel Rodriguez
Awesome Flow Meter for the pool

If you want to save money in electrical bill and prolong the life of your water pool pump. I would recommend this flow meter to anyone who wants a flow meter in their system. It is of great quality and overall great product.

W
William Green
2 inch flow meter.

Excellent product. Everyone with a pool should have one. Know exactly how many gpm you are flowing at different rpm.

G
Gerry
Great delivery, good gauge

I took off one star for two reasons. The gauge is hard to read because of the distance between the needle and the scale. It’s not always possible to get your head in the right position. (I use my phone camera.) And secondly because there is no back pressure published for the 1 1/2 inch version, and all the published back pressures should go down to 10 GPM.

V
Virginia
Excellent Product - Perfect replacement for our old Blue-White meter

We are very happy with this replacement flow meter. We are using it in our 28,300 gallon in ground pool and it is a huge improvement over our old flow meter. It is so easy to read and we are much more confident we are getting the flow required by our state for our semi-public pool that serves our condo association. Easy to install, directions are clear. Highly recommended.

T
Todd Harrison

FlowVis Flow Meter 1.5"
