Gecko in.yj-3 Control System 0612-300001

Gecko in.yj-3 Control System 0612-300001

The Gecko in.yj-3 control system is the economical choice for complete control of your spa at your fingertips. Light up your hot tub with an output capacity increased to 1.3A and the integration of the in.mix 300 color system on the main board. The new in.lu.me cables and LED lights can be connected directly to the in.ye-V3 box with full color control directly from the keypad.

With its new terminal block, onboard AMP connectors and an evolved cable-strain relief system, it has never been easier to connect your accessories to a control box! We’ve also added a pathway to connected accessories with faster communication.

The in.yj-3 Control System Can Operate:

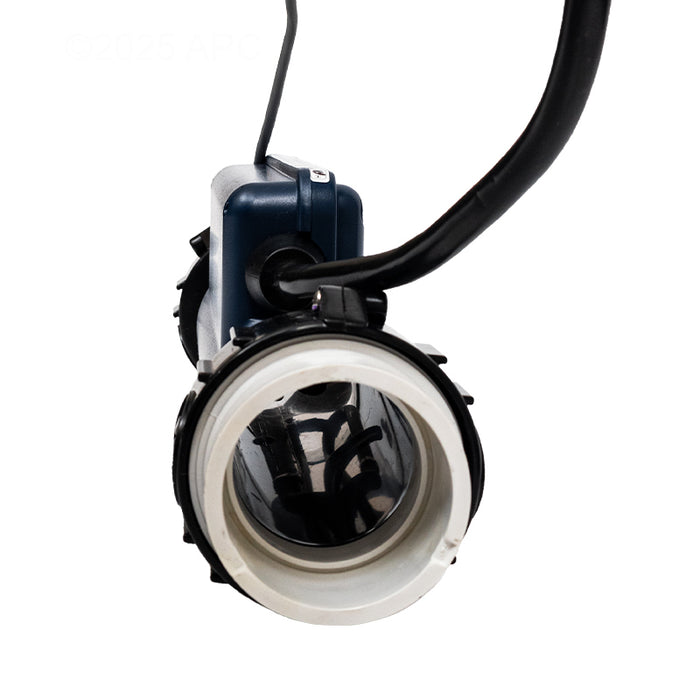

• (1) 4.0 kW Heater Assembly
• (1) Single or Two Speed Pump 120 Volt or 240 Volt

• (1) Ozonator
• (1) Spa Light

Features:

• Each pack supports a keypad, heater, a 12 V AC light, and configurable relays
• Solid-state water flow detection: No pressure switch to adjust
• IPX5 rated waterproof design
• Preloaded configuration allows fast and easy installation
• in.touch 3 compatible
• 120/240 V convertible
• Each output voltage can be configured 120/240 V
• AMP, Quick Connect
• Standard 2" heater
• Aeware keypad compatible
• Small footprint

Specifications:

• Voltage: 120/240
• UL/CSA Standards Listing: UL 1563 Sixth Edition and CAN/CSA C22.2 No. 218.1-13

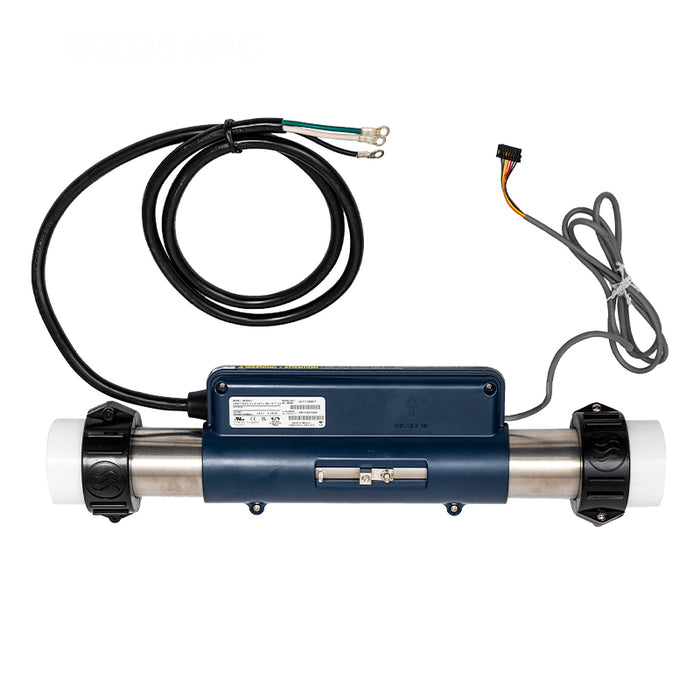

• Heatwave Heater Voltage: Voltage: 120 or 240 Volt, 60 Hz / Wattage: 5,5 kW at 240 Volt,  / 4 kW at 240 V or 1 kW at 120 Volt
• Flow rate: Minimum of 18 GPM (68 LPM) is required

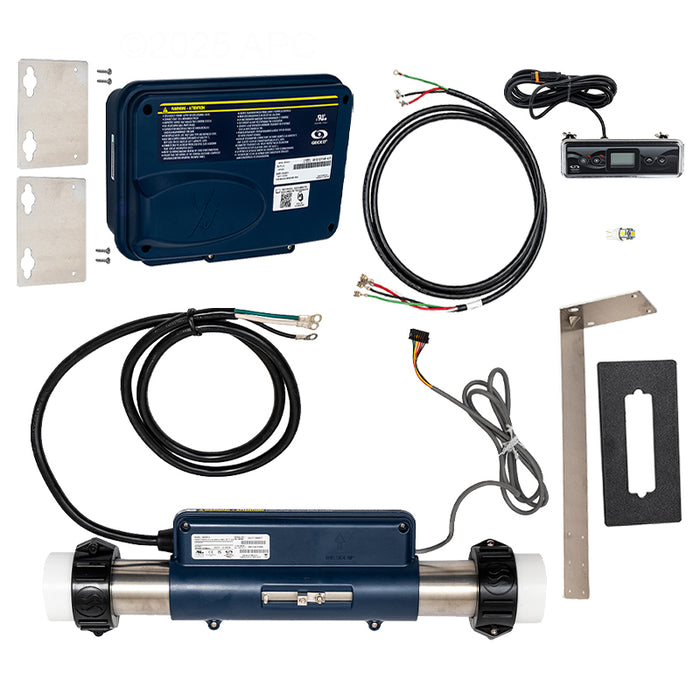

System Includes:

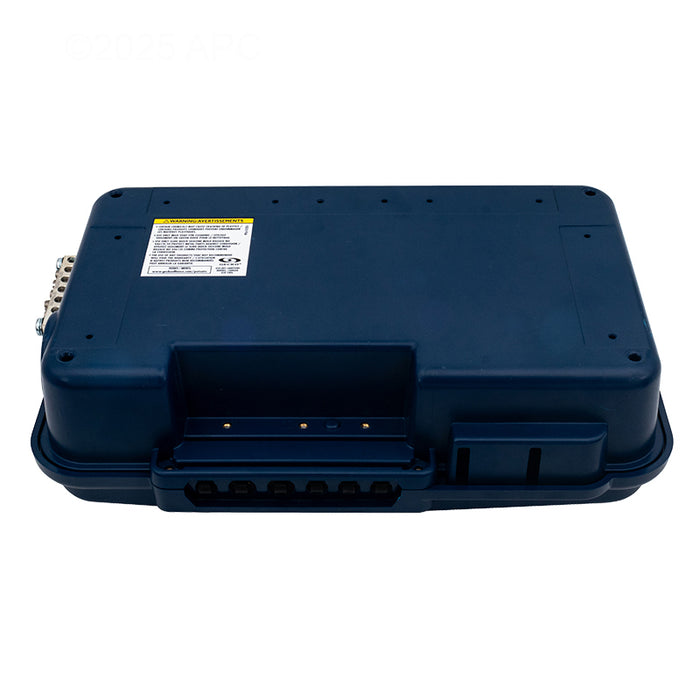

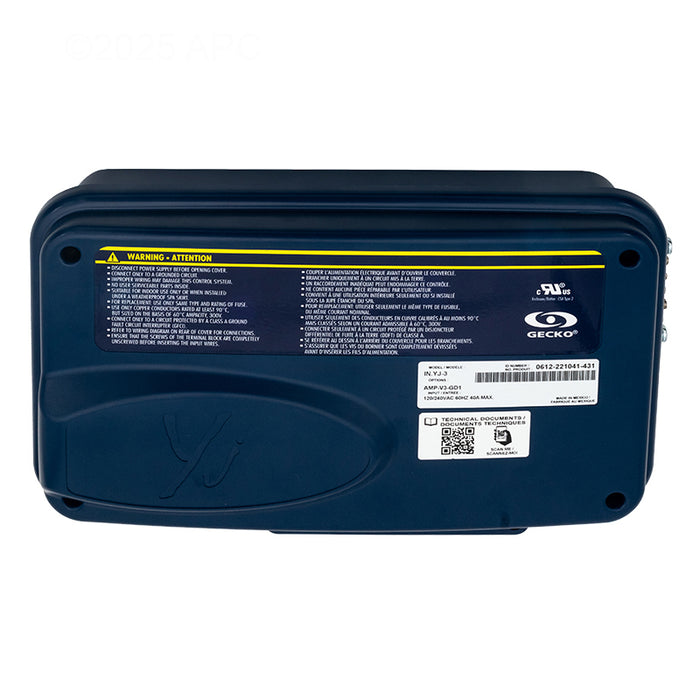

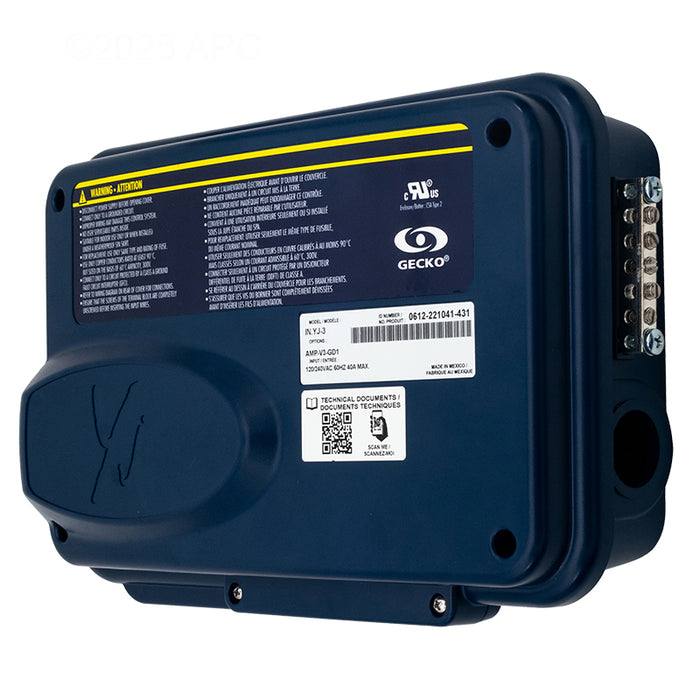

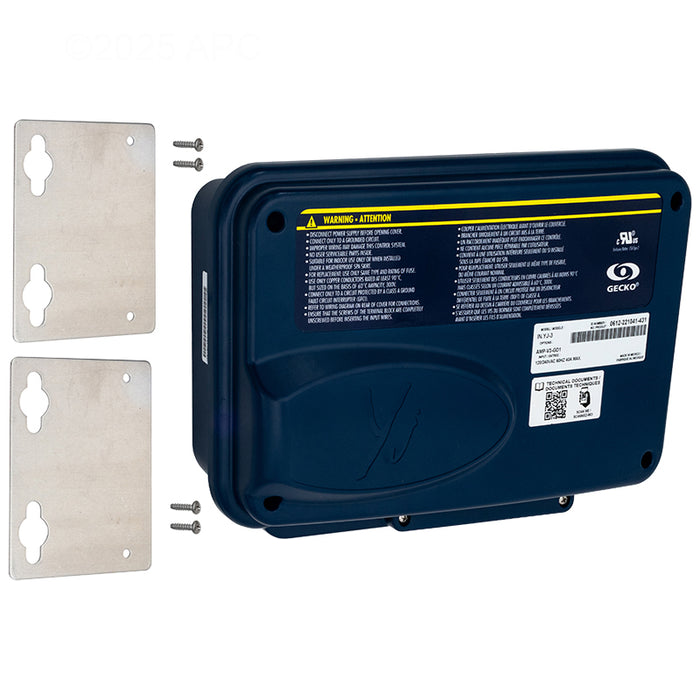

• Spack Pack : in.yj-3

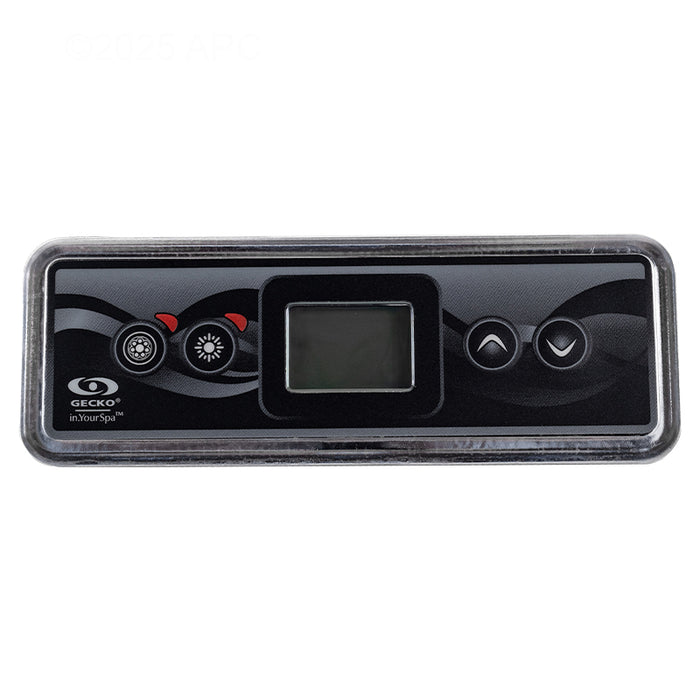

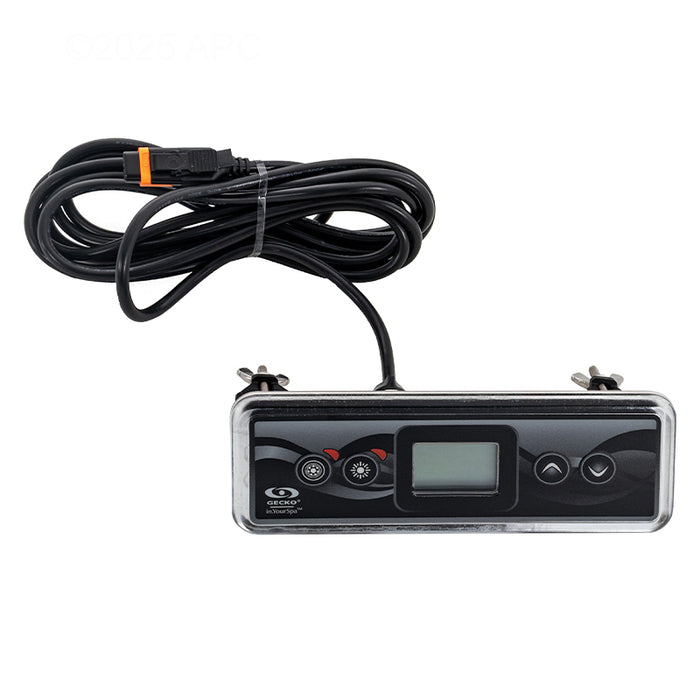

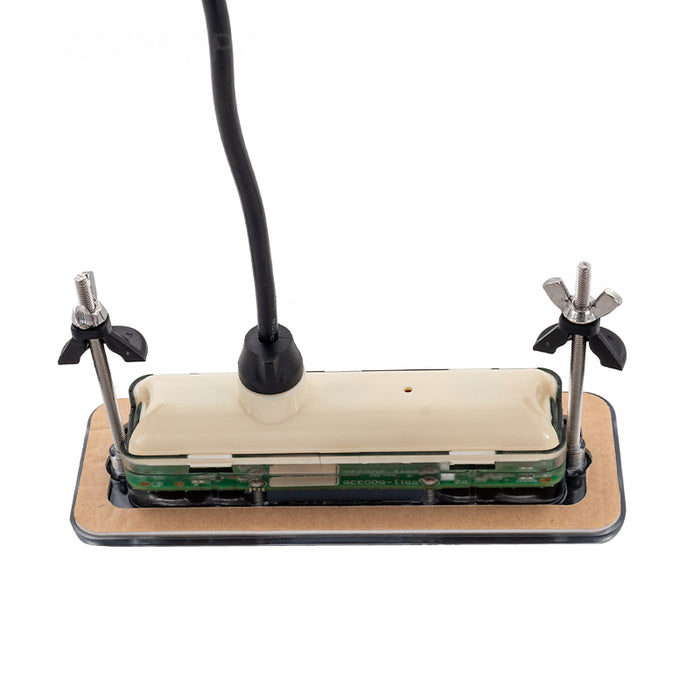

• Keypad: in.k300-1OP

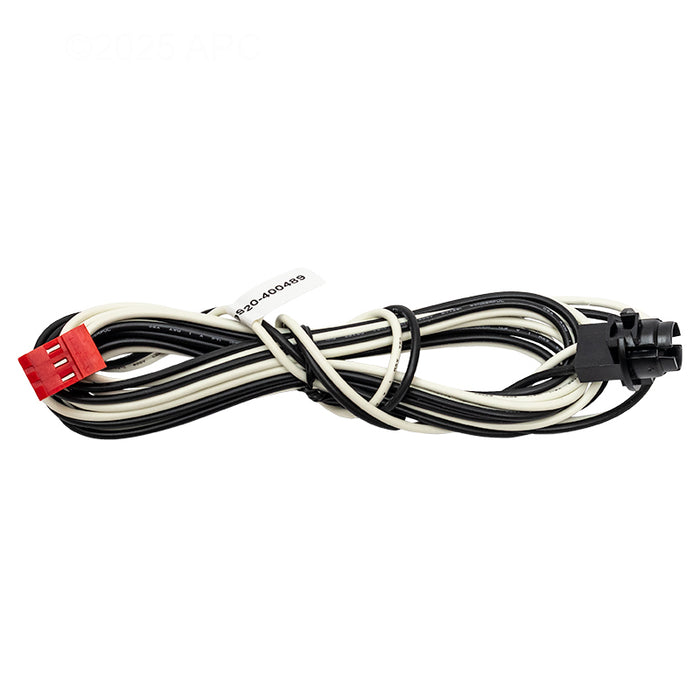

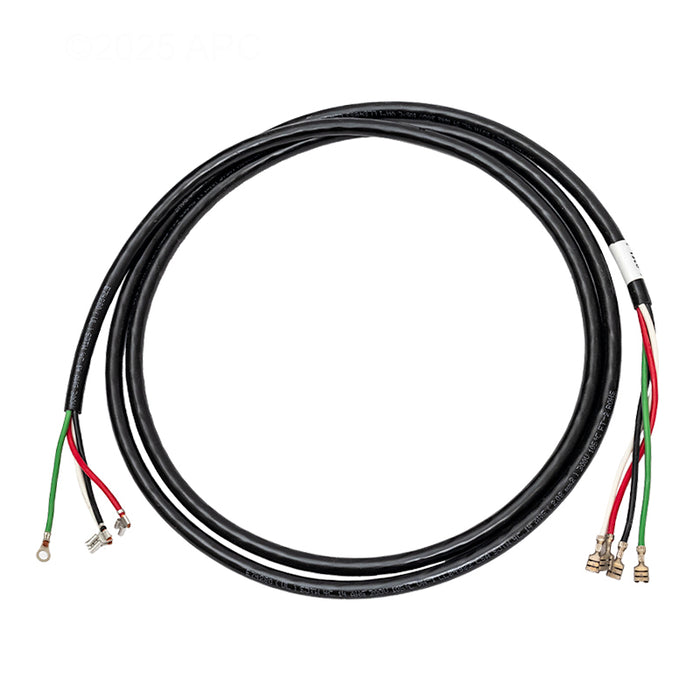

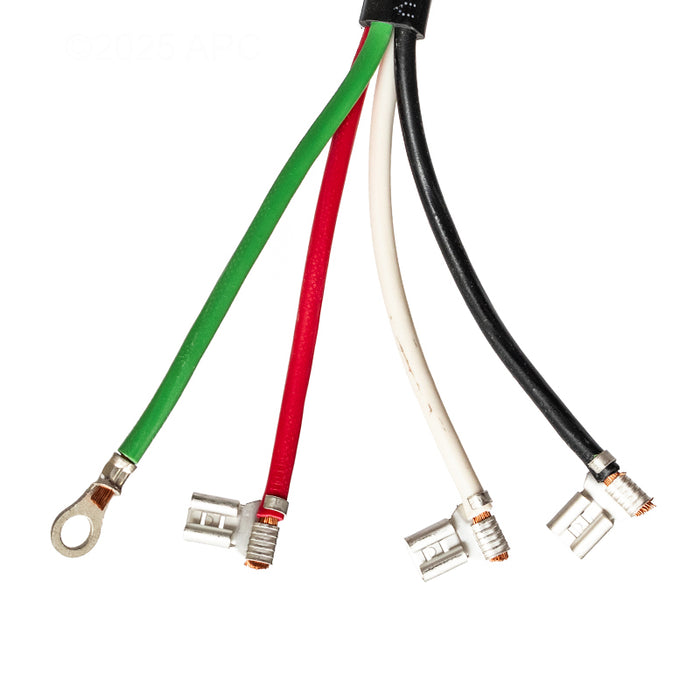

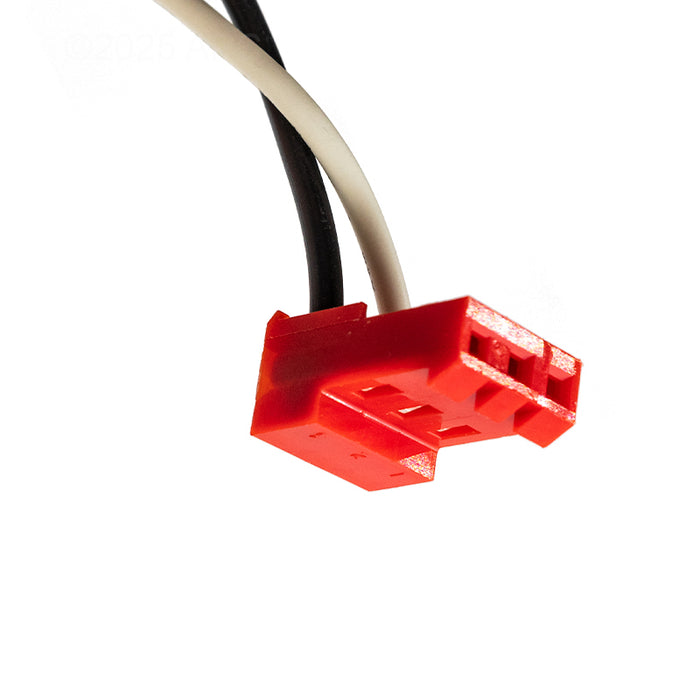

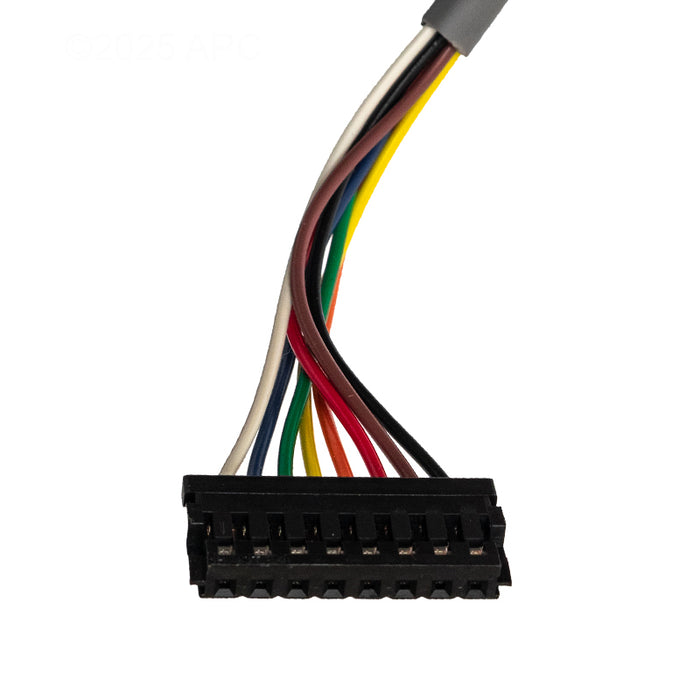

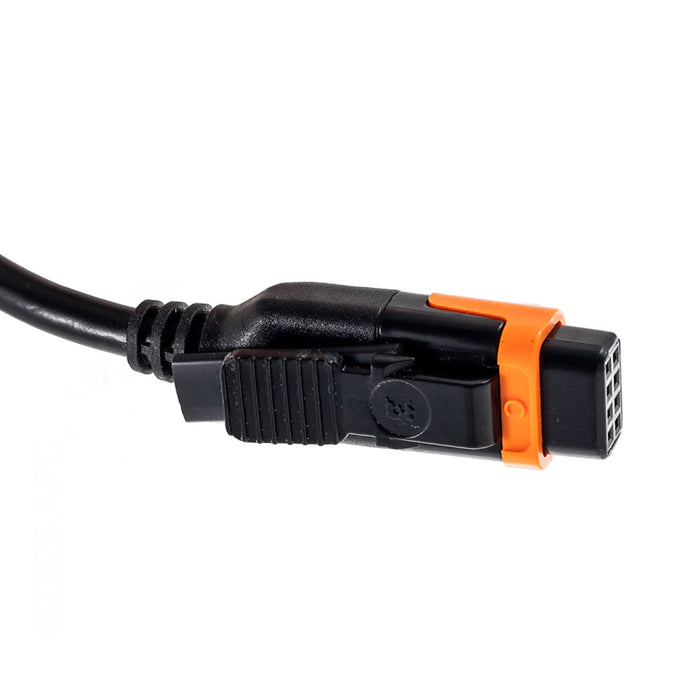

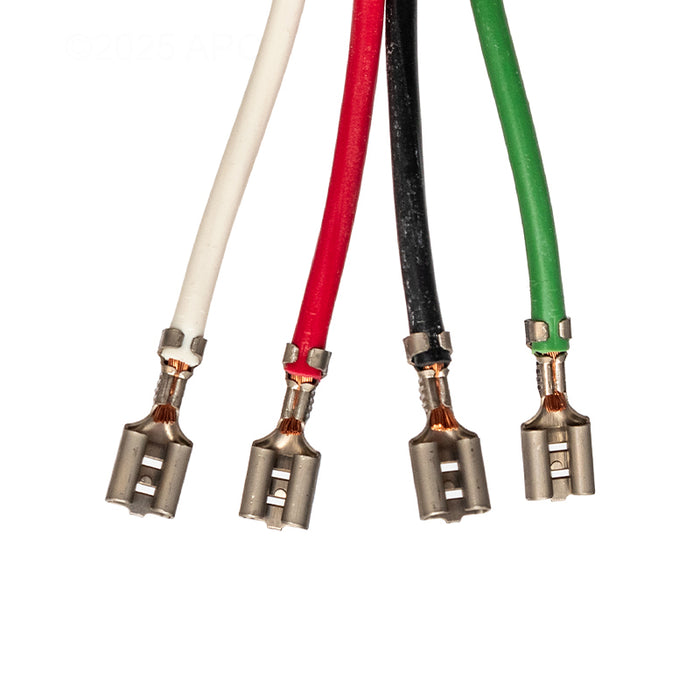

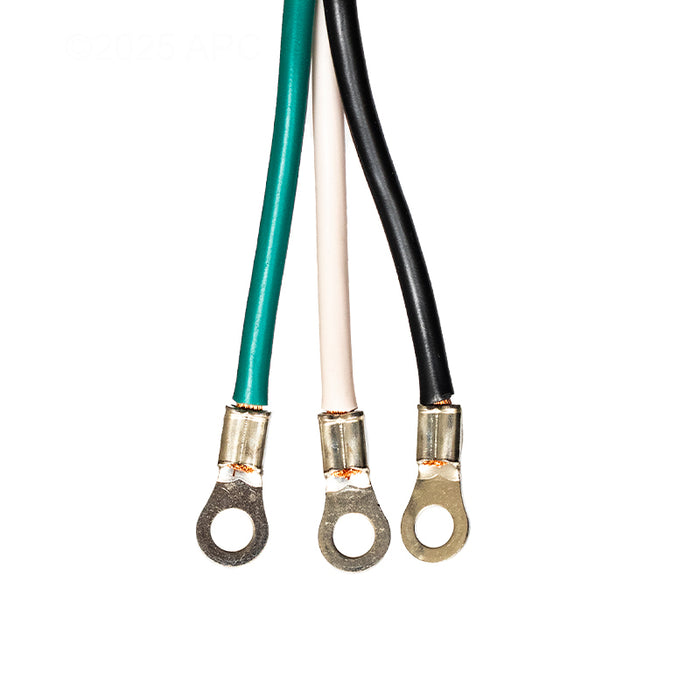

• Cables: 2 Dual Speed Amp Cables

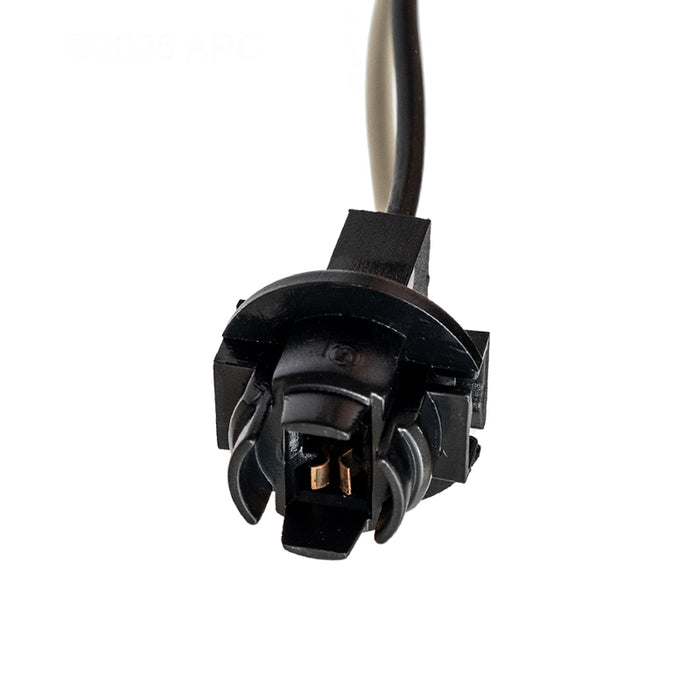

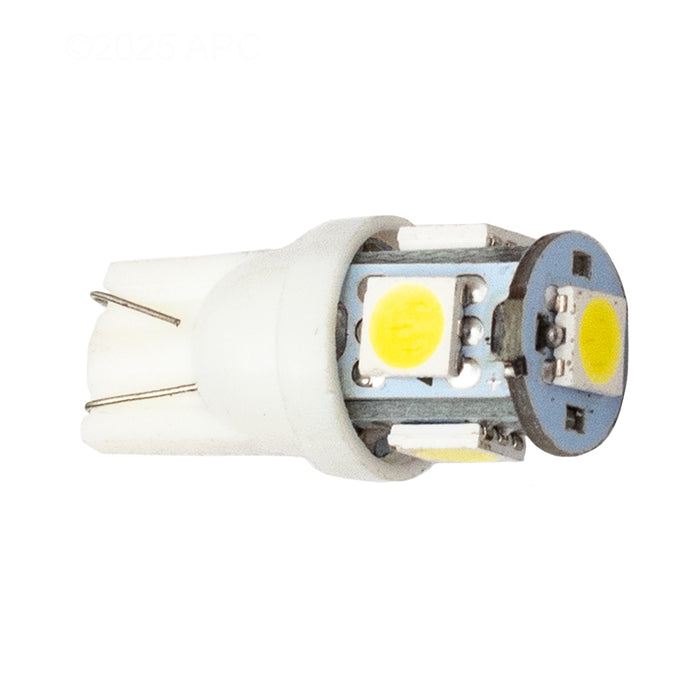

• Light

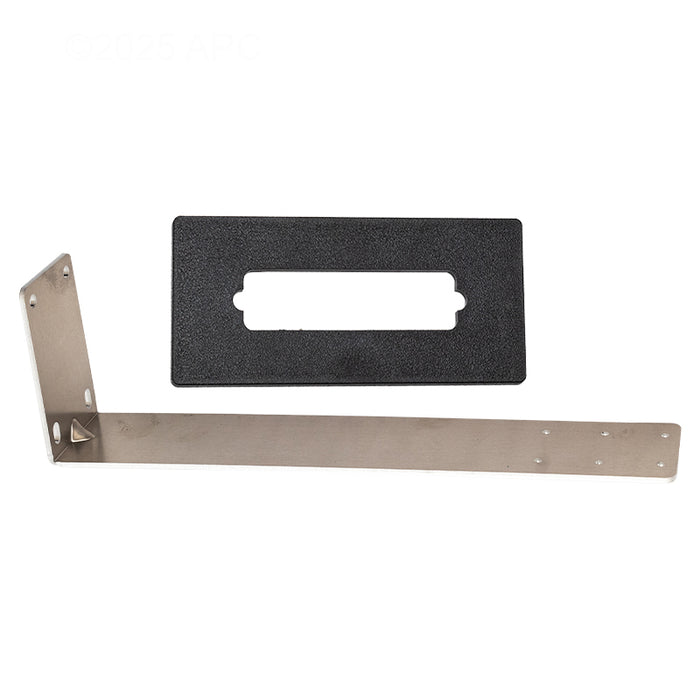

• Adaptor Plate for Control Panel
• Mounting Bracket Screw Kit

Note:

• Hot Tub Control Systems are intentended to be installed by a professional spa or hot tub technician. The control systems need to be configured based on the equipment your spa is using and are not plug and play.

Gecko 0612-300001
