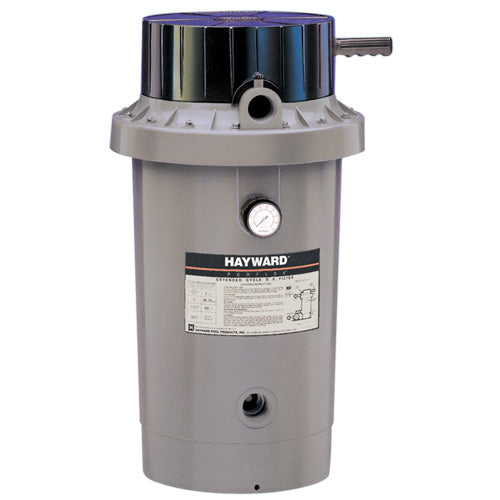

Hayward Basic Modular Filter W3EC75A

Hayward Basic Modular Filter W3EC75A

Perflex extended-cycle diatomaceous earth (DE) filters provide superior water clarity and extended filter cleaning cycles without requiring backwashing.

Features:

• Clean pools fast, removing particles as small as two microns the first time through.
• Patented Flex-Tube design gives longer cycles between cleaning because the same D.E. filter powder is used over and over
• Unique bump mechanism allows DE flex tubes to instantly and uniformly clean themselves of dirt and DE filter media
• Self-venting design automatically expels any air that may be present in the system
• Proven, patented flex-tube filter elements efficiently reuse the filter powder and dirt mixture forming a fresh filtering surface
• Combination pressure gauge and threaded inspection/service port is easyto read and remove when filter needs cleaning
• Heavy-duty filter tank injection-molded of high-strength thermoplastic for dependable, corrosion-free performance
• Integral check valve prevents system backflow whenever pump is off

Specifications:

• D.E. Required:7 Lbs
• 1-1/2" Drain Valve
• 1-1/2" Pressure Gauge/Inspection Port
• Includes Check Valve
• Effective Filtration Area:40 Square Feet
• Public Design Flow Rate:80 GPM
• Residential Design Flow Rate:100 GPM

Dimensions:

• 21" Width x 31" Height

Hayward W3EC75A
