Intermatic T101R3 Mechanical Timer 110 Volt
Intermatic Mechanical Timer T101R3

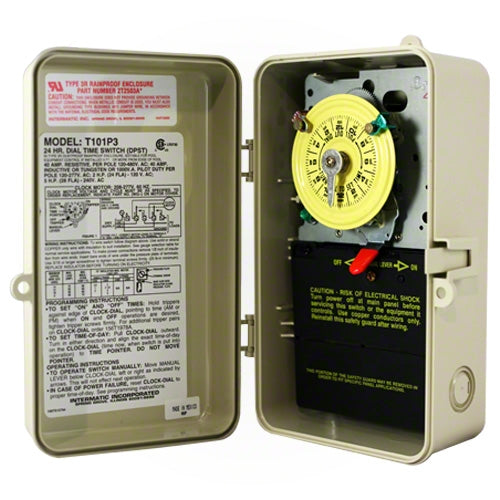

The T101R3 Intermatic timer has a heavy duty mechanical timer and is designed for commercial and residential applications including pool and spa applications. For Indoor / Outdoor use 110 Volt and includes a Nema 3R metal enclosure.
When in comes to controlled timers, Intermatic leads the way. Intermatic's heavy duty Mechanical Time Switches are designed for industrial, commercial and residential applications and have the highest motor load ratings in the industry.
This model provides up to 12 ON-OFF operations each day with minimum ON-OFF time of 1 hour. This model is also equipped with "ON" and "OFF" trippers and is available in a metal indoor-outdoor enclosure.
- Product Specs:110 Volt
- DPST Switch

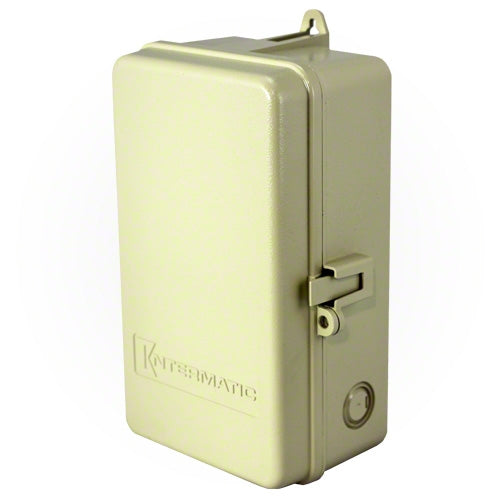

- NEMA 3R Metal Case - 9-3/8" (23.8 cm) high x 5-1/2" (14.0 cm) wide x 3-5/8" (9.2 cm) tall.
- Knockouts - Combination 1/2" - 3/4" nominal knockouts, one on the back and each side of case, two on bottom
- Shipping Weight - 3.75 lbs. (1.7 kg)
- Agency Approval - CSA/C-US
