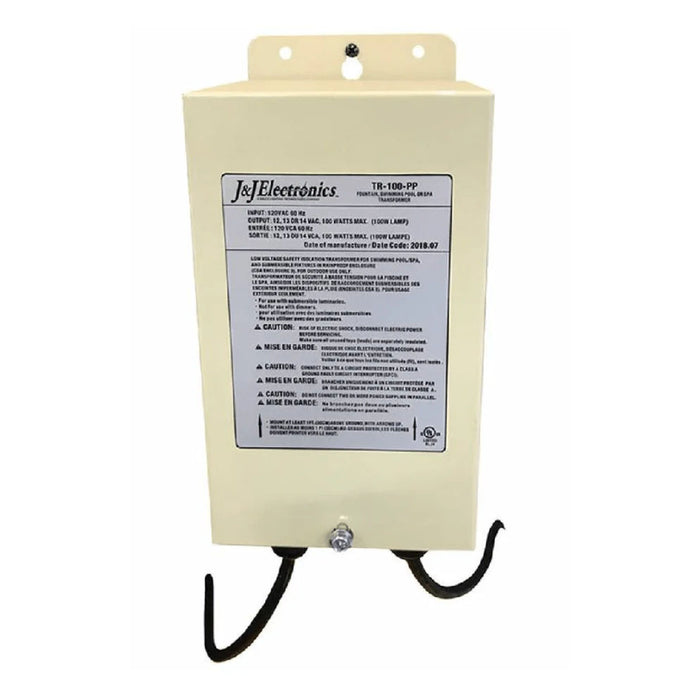

J&J Electronics Low Voltage Transformer 25036

J&J Electronics Low Voltage Transformer 25036

Features and Benefits:

• Operates in harsh environments
• Approved to UL Pool Standards
• Works flawlessly with most color changing LED Pool Lights
• Insulated Coil to Reduce Noise
• Removable Mounting Brackets
• Brushed 304 grade stainless steel
• Removable hinged cover for easy access
• Tool-less bottom access plate locks into place when cover is closed
• Bottom panel contains one large 1-1/2" conduit inlet and four 3/4" knockouts for lead exit
• Mounting brackets located on top and bottom of the console

Electrical:

• Input Voltage: 120 Volt
• Wattage: 100
• Magnetic circuit breaker for every 300W circuit
• Output Voltage Taps: 12-15 Volts

Protection:

• In-line primary overload protection prevents system damage with auto thermal shut-off
• In-line secondary magnetic breaker prevents short circuit protection with reset


Terminals:

• Extra-large terminal block for convenient low voltage cable connections

Hayward 25036 (TR-100-PP)
