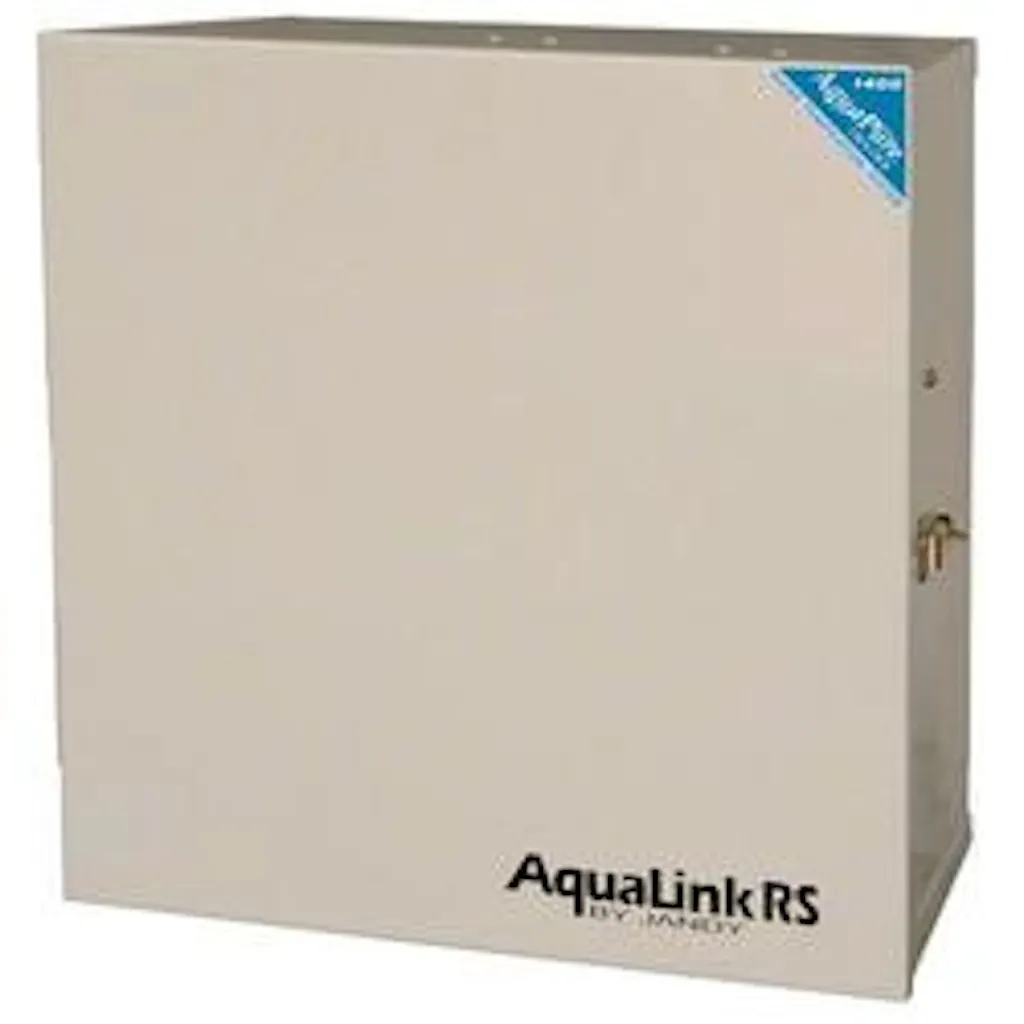

Jandy PureLink Standard Power Center 6613AP

Item #: 6613AP

This item is IN STOCK


Usually Ships Within 1 Business Day

Notify me when restocked

Available for: Same Day Pickup

Available for: Same Day Delivery

Item Details

Jandy PureLink Standard Power Center 6613AP

The PureLink Standard Power Center is designed for use with AquaLink RS control systems that also want to incorporate a Chlorine Generator. The PureLink Power Center works with the AquaPure Cells (PLC700 or PLC1400) or the Fusion Soft (FSOFT700 or FSOFT1400) chlorine generator systems. (Sold Separately)

Aqualink RS PureLink Standard Power Center Features:
  • Operates up to 8 circuits.
  • Four 3 HP Relays. (can add up to eight)
  • Works with all AquaLink RS and PDA control models.
  • Seperate pool and spa chlorine settings.
  • Super chlorinate feature.
  • Salt display and diagnostic information.
  • Controls AquaPure and Fusion Soft chlorine generator cells.
  • Powder-coated, galvanized steel construction.
  • Simple, top-down installation, 3 HP Relays.
  • Add up to three auxiliary power centers within 500 feet of the primary power center.
Technical Specifications:
  • An additional 4" added to the low voltage raceway.
  • 120/24 VAC Transformer (supply input).
  • Multiple knockouts for 1/2" to 1 1/2" conduit.
  • Service and time-out for all circuits (AquaLink RS and PDA).
  • Optional surge protection for all components.
  • 14" Wide X 14" Height X 6" Depth
Jandy 6613AP
Zodiac 6613AP
