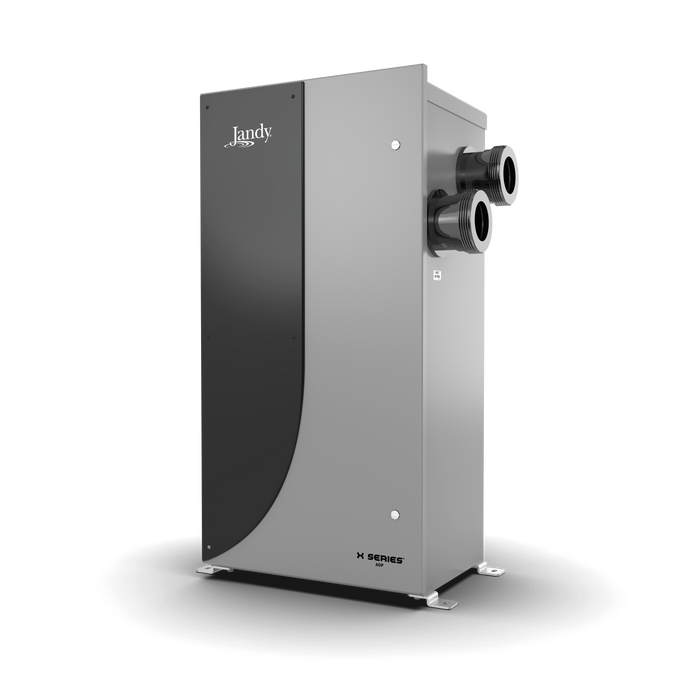

Jandy X500 AOP Ozone and UV System JAOPX500

Jandy X500 AOP Ozone and UV System JAOPX500

Jandy has been the leading technology innovator for residential pool sanitation, and the new X500 AOP continues the tradition. The X500 AOP is designed for swimming pools with up to 50,000 gallons of water. The X500 AOP pool sanitizer is built primarily from two components - the ozone generator and the UV lamp chamber - which are pre-plumbed and pre-wired. The system installs with simple inlet and outlet unions for water flow and one electrical connection.

Science has shown that your water is simply cleaner when you add AOP to your pool. Combining the powerful technologies of UV-C and Ozone, Jandy X-Series AOP Systems, powered by DEL technology, offer superior oxidation to rid your pool of 99.9% of certain contaminants that chlorine alone can’t - giving you pool water that’s cleaner, clearer and healthier to swim in than when you use chlorine alone.

The X500 AOP is a small Advanced Oxidation Process (AOP) system that combines the oxidation power of ozone with the germicidal capability of low-pressure UV light to take pool sanitation to a new level. The key to this system is that ozone and UV interact to generate hydroxyl free radicals, the most powerful disinfectant for water treatment that is safe for humans.

The X500 AOP provides the benefits of both technologies plus the Advanced Oxidation Process for optimal water clarity and increased removal of contaminants in pool water. This innovative advanced sanitation system creates a synergy that injects higher disinfection potential into the pool water than the ozone and UV components can do independently.

The definition of AOP is that a chemical reaction is initiated that generates hydroxyl free radicals (OH). The OH is a highly unstable and unselective oxidizer: it instantly interacts with organic and inorganic substances to break them down. This instantaneous disinfection process removes all contaminants from pool water with no harmful byproducts. It's the hydroxyl free radicals that make this small AOP system the most potent pool sanitation agent or process on the market.

AOP systems are typically much larger and are used for industrial or municipal water treatment. But with Jandy's new Advanced Plasma Gap ozone cells and top quality germicidal UV lamps from Trident Ultraviolet, Jandy engineers were able to create a small, dependable unit that is designed to work with existing standard residential pool plumbing and mechanicals.

X500 AOP Features:

• Corona Discharge Ozonator and Germicidal UV
• Safe, Sustainable, Low-Cost Pool Sanitation
• Say goodbye to red eyes, damaged hair, itchy skin and smelly pools - AOP delivers water that’s not just cleaner it’s more comfortable
• Spend more time enjoying your pool, and less time doing maintenance

• AOP oxidizes contaminants in the water so they can be filtered out better

• Del Ozone Exclusive Plasma Gap Ozone Technology
• Integrated Trident Germicidal Ultraviolet Technology
• Designed for indoor or outdoor installations

• UL, cUL Listing Certifications
• Germicidal UV Lamp Life of 16,000 Hours
• Expectant Ozone Cell Life of 5 years


Specifications:

• Feed Type: In-Line
• Mains Supply: 240 VAC 60Hz, 1, 0.6 A
• Wattage: 144
• Flow Rate: Maximum 50 Gallons Per Minute Flow Rate
• Max Pool Volume: 50,000 Gallons
• Plumbing: 2" Inlet and Outlet Plumbing with Union Connections
• Mounting: Floor or Wall
• UV-C Lamp: Low Pressure / 16,000 Hours / High Output UV-C
• UV-C Wavelength: 256 nm
• Ozone Cells: 3 Corona Discharge Cell
• Ozone Output: 500 mg/hour

Dimensions:

• 14" Wide X 28" Height X 17" Depth

Jandy JAOPX500 (Formerly Known As Del Ozone SEC-100-26 and SEC-110-26)
