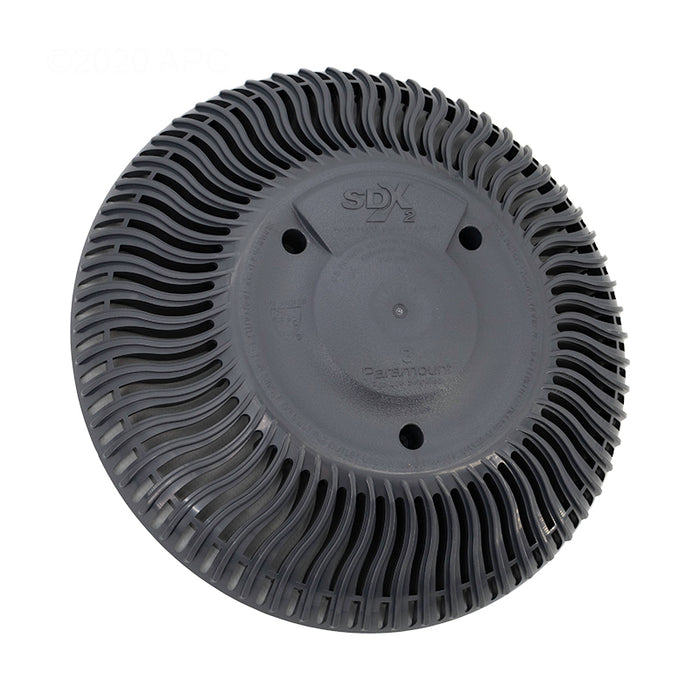

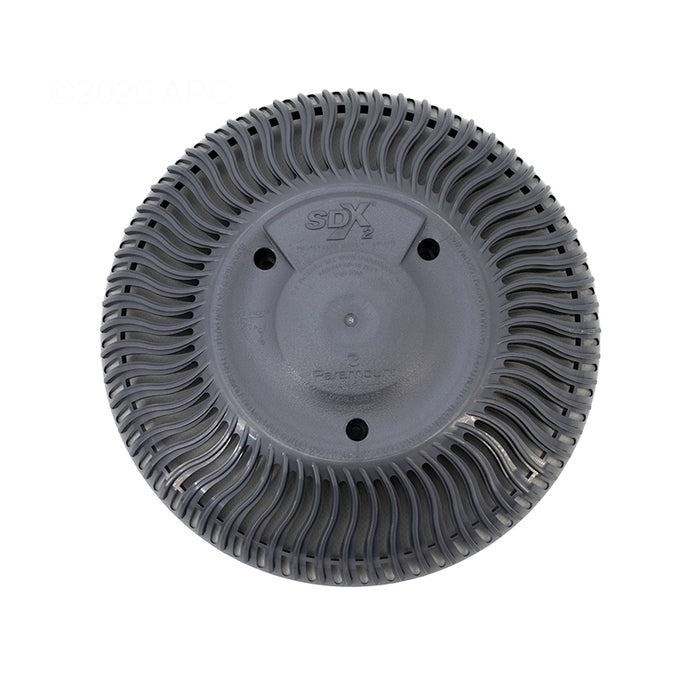

Paramount SDX2 Safety Drain Cover 005252209702

Paramount SDX2 Safety Drain Cover 005252209702

SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. SDX2 Drain Covers boast a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible with most residential pumps up to 3 horsepower. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.

Features:

• SDX2 Cover with Screws for Concrete Pools
• NO SUMP REQUIRED = TIME SAVED. No need to field fabricate a sump to meet the 1.5 times the pipe diameter requirement.
• Low velocity 1.396 feet per second at the maximum (188 gpm) flow rating.
• Patented ribbed design achieves very high flow via 60 independent flow partitions.
• Approved as a bulkhead fitting as the safety is in the cover and back plate.
• Anti-vortex center shield blocks contact with direction suction.
• SDX2 comes with a plaster ring for new applications.
• Great for use with water features.
• VGB 2008 Compliant
• Life in years = 5 years installed

Color:

• Gray

Paramount 005252209702
