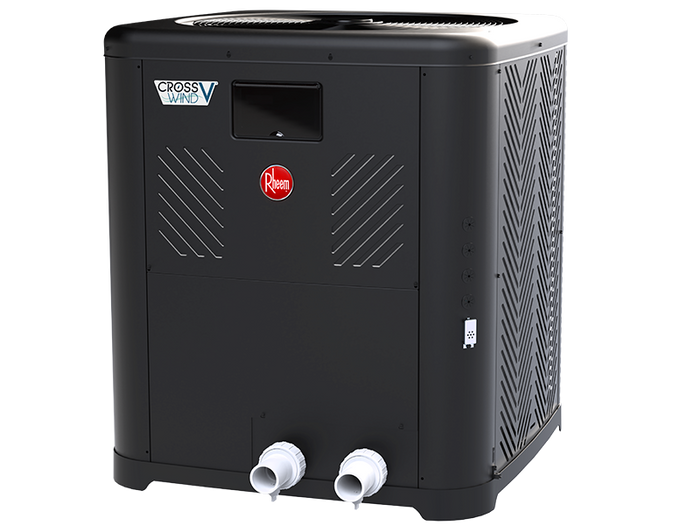

Raypak CrossWind V 102,000 BTU Pool and Spa Heater TWPH-5550EHT08

Raypak CrossWind V 102,000 BTU Pool and Spa Heater TWPH-5550EHT08

Introducing the Raypak Crosswind V Pool and Spa Heat Pump (Vertical Discharge): sleek, modern design that will look great in any backyard. Thoughtfully designed with a smaller footprint and lighter weight ensuring a seamless and hassle-free setup. Crosswind V fits on standard equipment pads and industry standard 2ʺ water connections, conveniently accessible through the front panel for enhanced serviceability.

Features:

• Compact and Easy to Install - The small footprint and lightweight design reduces install time and saves on unnecessary labor costs.
• Easy Access for Serviceability and Maintenance - The control junction box (J-box) can be quickly removed, making it easy to service and clean. Includes a longer control harness to access internal components.
• High-Efficiency - The Crosswind V uses less energy and allows you to save on your monthly bill.
• Advanced Heater Control - Featuring capacitive touch design and easy-to-read diagnostics, this unit provides real-time status notifications directly to the you and servicer.
• Automated Scheduling - Intelligently heats and adapts to the size of your pool, notifying you when it reaches the desired temperature setting.
• System Automation - Raypak's 3-wire remote plug is compatible with ALL competitor controllers.
• Operation Manager - Enables you to manage your heater, pump, 2 accessories, valves, and more.
• Integrated Wi-Fi - Remotely monitor your pool or spa from anywhere, anytime with real-time updates and service alerts.
• Raymote Temperature & Heater Control - Raymote Mobile App allows you on-the-go control of your pool temperature and more.
• External Bypass Valving (Deluxe Models Only) - Automatically compensates for normal day-to-day changes in your pool’s hydraulics, maximizing heat transfer efficiency and extending the life of your heat pump.

Specifications:

• Model: Standard
• Type: Heater
• BTU/COP: 102,000/6.1
• Electrical Input (KW): 4.8
• Breaker Amps: 60 Amp Minimum/ 70 Amp Max
• Voltage: 208-230VAC
• Max Flow Rate: 60 Gallons Per Minute
• Unit Weight: 268 Pounds
• Dimensions: Width 33.793" X Depth 33.793" x Height 37.784"

Raymote:

You can control your Crosswind V settings from across the street - or across town - right from your phone. Whether you’re adjusting the pool heater temperature or checking on other pool functions, it’s all possible through the Raymote app.

System Automation Hybrid Operation Manager:

Dry-Contact Ports Crosswind V includes two built-in auxiliary dry-contact ports for pool accessories, such as lights and/or water features. Customers can also add relays to control high voltage accessories (sold separately).

Heat Source Delegation:

Crosswind V is equipped with patent pending Intelligent Performance Calculations to transfer heating to an external heat source. Crosswind V’s control will determine the best energy resource when integrated with a secondary heat source such as an additional gas, electric, or heat pump pool heater.

Raypak TWPH-5550EHT08
