Stenner Single Head Adjustable Chemical Injection Pump 45M5

Stenner Single Head Adjustable Chemical Injection Pump 45MJL5A1STAA

The electro-mechanical Classic Single Head Adjustable Output Pump works well with almost any brand of pool/spa chemical automation system controllers. The Classic Series single head adjustable pump has been tested by ETL to conform to the ANSI/NSF standard 50 when used with ANSI/NSF 50 listed controllers. Additional applications include pH control, oxidation, corrosion and scale control and more.

Stenner Pump Features:

• Pool/Spa Chemical Injection Pump
• Can work with almost any chemical automation system
• Interchangeable pump heads and tubes to convert one model to another; not necessary to purchase a new pump
• Easy and fast tube replacement without tools with the QuickPro pump head
• The pump is built with two detachable components; the motor and the pump head that can be separated without tools
• Self-priming against maximum working pressure, foot valve not required
• Can run dry and does not clog from dirt and debris
• Can pump off-gassing solutions without losing prime
• 3-point roller design assists in anti-siphon protection
• Self-priming against maximum working pressure, foot valve not required
• Pump does not lose prime or vapor lock
• Pumps off-gassing solutions and can run dry
• Output volume is not affected by back pressure
• Easy to change pump tube; lubrication is not required

Specifications:

• Output: 2.5 to 50 Gallons Per Day
• PSI: 0-25
• Maximum Operating Temperature: 125 Degrees
• Maximum Suction Lift: 25 ft (7.6 m) vertical lift, based on water
• Voltage: 120V / 60Hz
• RPM: 26 RPM

Pump Includes:

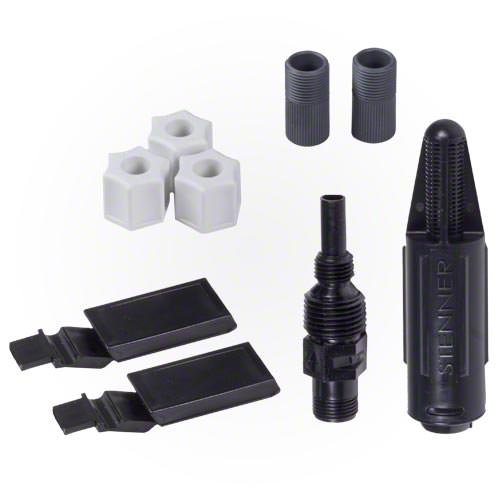

• (3) 1/4" Connecting Nuts
• (3) Ferrules
• (1) Injection check valve
• (1) Injection fitting (25 psi)
• (1) Weighted suction line strainer

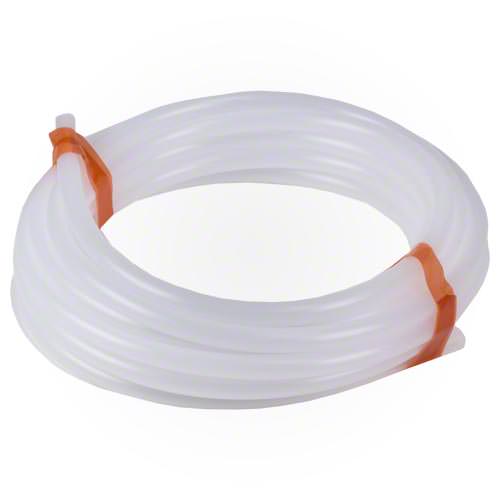

• (1) 20 Foot roll of suction/discharge tubing
• (1) spare pump tube
• (1) mounting bracket
• (1) manual

The wide range of applications for this pump include:

• Pool and Spa Applications
• Drinking water disinfection for animal health
• Poultry and livestock houses
• Irrigation Systems
• Water Conditioning
• Industrial Process
• Water and Wastewater
• Cooling Towers
• Systems with demand based backup wells
• Any application with varying flow rates

Stenner 45MJL5A1STAA
