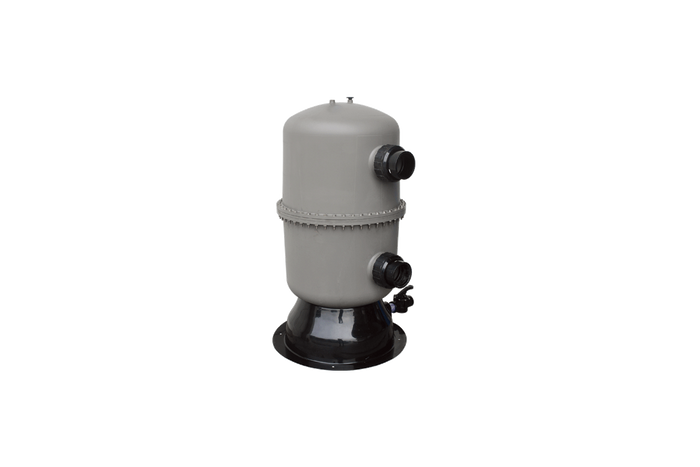

Waterco MultiCyclone 70 XL 200392

Waterco MultiCyclone 70 XL 200392

Waterco's award winning MultiCyclone is a brilliant pre-filtration device that works on the basis of centrifugal water filtration and is designed with no moving parts and no filter media to clean or replace.

MultiCyclone pre-filters up to 80% of the filter’s incoming dirt load easing the workload of the swimming pool filter. As the MultiCyclone intercepts more and more dirt, the flow rate remains unchanged.

Incoming water enters hydro-cyclones tangentially, generating a strong centrifugal effect. The sediment is spun out to the hydro-cyclone's wall, and then spirals down to the sediment chamber. The filtered water migrates towards the center of the hydro-cyclone where the flow reverses and spirals upwards through the outlet.

Features:

• 1st Stage Centrifugal Water Filtration System for Commercial Pools
• Minimizes filter maintenance and saves water
• No filter media to clean or replace
• Debris can be seen through a clear sight glass and flushed out of the purge valve
• Suitable for new and existing installations
• Improves pool water circulation
• Enhances the performance of the automatic pool cleaner and in floor cleaning system
• Allowseffective pool vacuuming without burdening the pool filter
• Quick fit unions for easy installation
• 1" Sediment purge valve for easy removal of debris

Specifications:

• Cyclones: 70
• Plumbing: 4"
• Minimum Flow:105 Gallons Per Minute
• Maximum Flow:423 Gallons Per Minute
• Maximum Pressure: 50 psi

Waterco 200392
