Balboa Spa Control System Complete 54217-Z (VS501Z)

Balboa VS501Z Spa Control System Complete 54217-Z

The Balboa VS501Z Control System Can Operate:

• (1) 5.5 KW Stainless Steel Heater Assembly (M7 Heater Assembly Included)
• (1) Two Speed Pump 120 Volt or 240 Volt
• (1) Blower Or Single Speed Pump 120 Volt or 240 Volt (This System will operate 1 two speed pump and 1 single speed pump or 1 two speed pump and a blower).
• (1) Ozonator
• (1) Spa Light

(If installing a circulation pump it must run at least 23 Gallons Per Minute)

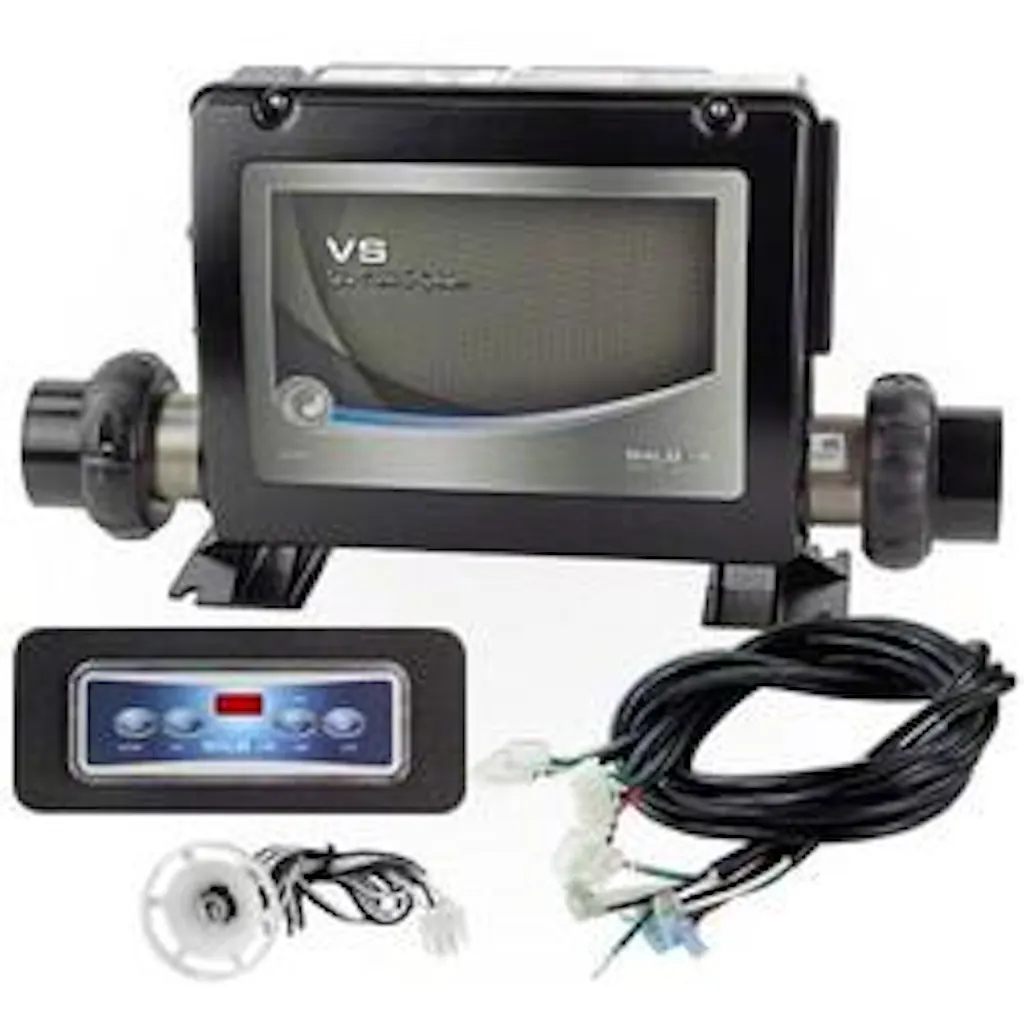

The Balboa VS501Z Control System Includes:

• VS501Z Control Pack (120 Volt or 240 Volt Convertible System Duplex)

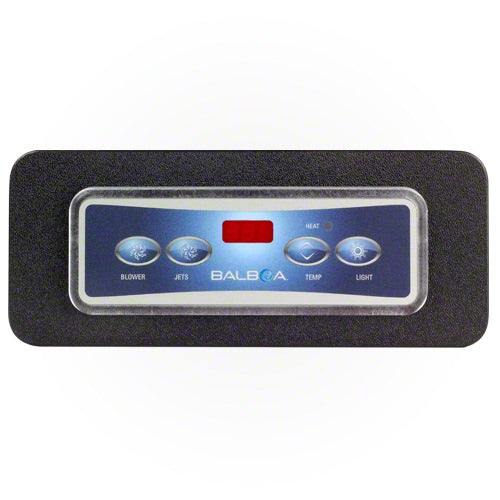

• Balboa Top Side Control Panel 51676 (Blower, Jets, Temp and Light Buttons)

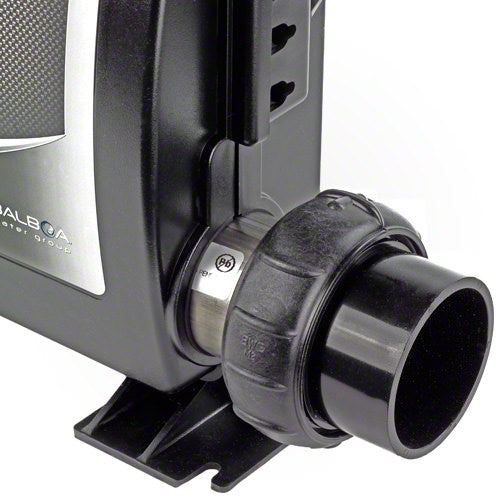

• Balboa Stainless Steel Heater Assembly with M7 Flow / Temperature sensors

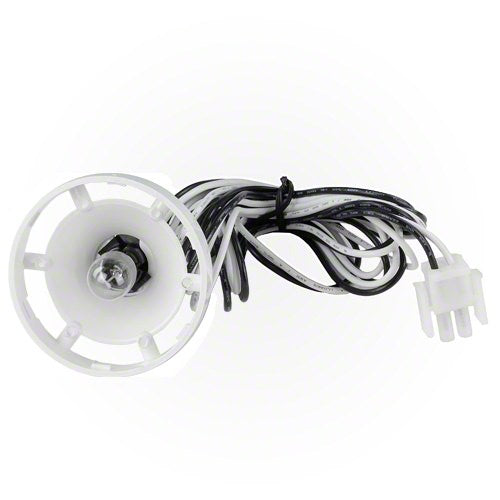

• Light Housing Assembly and Cord. Excludes Light Lens or Bulb. (Can operate a standard light or LED light)
• Balboa Panel Overlay 10752
• Balboa 11109 Top Side Control Panel Adapter Plate

Features and Benefits:

• Replaces failure-prone mechanical pressure/flow switch
• Can be plumbed to either suction or pressure side of pump
• 120/240V convertible power
• Custom plastic enclosure
• M7 flow/ temperature sensors
• Rigorously tested
• US and Canadian safety approvals

Why The Balboa Value Pack Retrofit Kit?
The Value Pack Retrofit kit is based on the Value Series (VS) family of hot tub controls which were designed using Balboa's patented M7 temperature and flow sensor technology. The VS systems have a plastic enclosure to eliminate corrosion and suppress water intrusion. Also, the connectors are built onto the circuit board to minimize wires and simplify service. The Value Pack is meant to be installed by a spa professional who can rest easy knowing he's working with a kit that is known for reliability, ease of installation and serviceability.

Thanks to a combination of Balboa engineering and patented M7 technology, we now offer the highest component reliability in the business with fewer returns and longer life expectancy than traditional non-M7 systems. At Balboa, innovative engineering and state-of-the-art manufacturing go hand in hand to deliver a quality, cost effective product that will provide years of reliable, headache-free service.

Patented M7 Technology Includes:

Smart Sensor Technology

• Multiple High Limit Safety Systems
• All Safety Functions always active
• Both Sensors are Identical
• Sensors monitor each other via software to regulate spa functions
• Ensures a proper operating environment for heater element
• No Sensor Installation in spa wall
• No Pressure Switch problems

Heater Element and Tube

• Incoloy and Titanium material options
• Enlarged bend radius
• No wire ties
• Minimizes debris collection

Heater Tube

• No welds required
• Front mounted
• Easy access for service

Note:

• Cords sold separately

Balboa 54217-Z
